Strategy Code Reference

Every strategy generated by QuantifyMe is a self-contained Python file. This guide explains how to read it, what each section does, and how to make common edits — especially if you're coming from PineScript.

How it works

Each strategy file has 7 numbered sections. You only need to edit Sections 2, 4, 5, and 6 for most changes. Sections 1, 3, and 7 are the engine — leave them alone unless you know what you're doing.

PineScript vs Python — side by side

If you know PineScript, here's how the concepts map across.

2 Feature Engineering

This is where indicators live. Anything you add here becomes an input to the ML model. The function receives df, close, open_, high, low and must return df with new columns added.

def feature_engineering(df, close, open_, high, low):
    df = df.copy()

    # SMA crossover feature
    df['sma_20'] = close.rolling(20).mean()
    df['sma_50'] = close.rolling(50).mean()
    df['sma_cross'] = (df['sma_20'] - df['sma_50']) / close  # normalised gap

    # Bollinger Band position (0 = at lower band, 1 = at upper band)
    bb_mid = close.rolling(20).mean()
    bb_std = close.rolling(20).std()
    df['bb_position'] = (close - (bb_mid - 2*bb_std)) / (4*bb_std)

    # Candle body: positive = bullish bar, negative = bearish
    df['candle_body'] = (close - open_) / (high - low + 1e-9)

    return df

3 ML Model

build_model() trains the classifier and wraps it in a ModelWrapper for consistent inference. It reads hyperparameters from optimization_config().

def build_model(X_train, y_train):
    cfg = optimization_config()

    clf = XGBClassifier(
        n_estimators=cfg.get("n_estimators", 200),
        max_depth=cfg.get("max_depth", 5),
        learning_rate=cfg.get("learning_rate", 0.05),
        use_label_encoder=False,
        eval_metric="mlogloss",
    )
    clf.fit(X_train, y_train)

    return ModelWrapper(clf, original_classes=le.classes_, n_features=X_train.shape[1])

4 Signal / Entry Logic

The model outputs a probability for each direction: p_pos = probability of price going up, p_neg = probability of price going down. The threshold controls how confident the model needs to be before entering.

def generate_signals(model, X, thresh):
    proba = model.predict_proba(X)

    p_pos = ...  # P(long)  — ranges 0.0 to 1.0
    p_neg = ...  # P(short) — ranges 0.0 to 1.0

    signal = pd.Series(0.0, index=X.index)   # default: flat
    signal[p_pos > thresh] = 1.0              # long if confident enough
    signal[p_neg > thresh] = -1.0             # short if confident enough

    return signal, p_pos, p_neg

Default thresh = 0.55. Raise it (e.g. 0.65) for fewer but higher-conviction trades. Lower it for more trades.

5 Optimisation Target

optimization_config() returns a dict of hyperparameters that build_model() reads. Change values here to tune the model without touching the model code.

def optimization_config():
    return {
        "objective":      "Maximize Sharpe ratio",
        "notes":          "Conservative depth, balanced class weights",
        "n_estimators":   200,
        "max_depth":       5,
        "learning_rate":  0.05,
        "class_weight":   "balanced",
    }

6 Risk Management

After the signal is generated, apply_risk() can scale, filter, or override it. The default just applies position sizing.

def apply_risk(signal, close, pos_size=1.0):
    return signal * pos_size  # scale position (0.5 = half size)

You can add stop loss and take profit logic here — see the stop loss example below.

7 Backtest Engine (read-only reference)

This is what runs when you click Run Backtest. Key things to know:

• Data is EURUSD ticks resampled to 15-minute OHLCV bars
• Signal executes on the next bar's open — signal.shift(1) — no look-ahead bias
• The target the model learns is: sign(close[+4bars] - close[now]) — direction 1 hour ahead
• 70% of data = training, 30% = test (what you see in results)
• Costs: commission charged on every trade change, overnight swap at 00:00

Common edit: Buy on market open

To only take long entries in the first 30 minutes of a session (e.g. London open at 08:00 UTC), add a session filter to apply_risk() in Section 6:

def apply_risk(signal, close, pos_size=1.0):
    signal = signal.copy()

    # Only take NEW long entries in first 30 min of London open (08:00–08:30 UTC)
    london_open = (signal.index.hour == 8) & (signal.index.minute < 30)

    # Mask out longs that start outside that window
    new_long = (signal == 1) & (signal.shift(1).fillna(0) != 1)  # entry bar only
    signal[new_long & ~london_open] = 0

    return signal * pos_size

For NYSE open (14:30 UTC), change the hour to 14 and minute to < 50 for the first 20 minutes.

# NYSE open — first 20 minutes (14:30–14:50 UTC)
nyse_open = (signal.index.hour == 14) & (signal.index.minute >= 30) & (signal.index.minute < 50)

Common edit: Session filter (trade only during specific hours)

Completely block trading outside certain hours:

def apply_risk(signal, close, pos_size=1.0):
    signal = signal.copy()

    # Only trade during London + NY overlap: 13:00–17:00 UTC
    in_session = (signal.index.hour >= 13) & (signal.index.hour < 17)
    signal[~in_session] = 0  # flat outside session

    return signal * pos_size

Common edit: Stop loss & Take profit

Add pip-based SL/TP inside apply_risk(). For EURUSD, 1 pip = 0.0001.

def apply_risk(signal, close, pos_size=1.0):
    signal = signal.copy()

    SL_PIPS = 0.0020  # 20 pip stop loss
    TP_PIPS = 0.0040  # 40 pip take profit  (2:1 RR)

    position   = 0
    entry_price = 0.0

    for i in range(len(signal)):
        price = close.iloc[i]
        sig   = signal.iloc[i]

        if position == 0 and sig != 0:
            position    = sig
            entry_price = price

        elif position != 0:
            move = (price - entry_price) * position
            if move <= -SL_PIPS or move >= TP_PIPS:
                signal.iloc[i] = 0   # exit
                position = 0

    return signal * pos_size

Common edit: Add a custom indicator

RSI

# In feature_engineering(), add:
delta  = close.diff()
gain   = delta.clip(lower=0).ewm(com=13, adjust=False).mean()
loss   = (-delta.clip(upper=0)).ewm(com=13, adjust=False).mean()
df['rsi_14'] = 100 - 100 / (1 + gain / loss.replace(0, float('nan')))

MACD

ema12 = close.ewm(span=12).mean()
ema26 = close.ewm(span=26).mean()
df['macd']        = ema12 - ema26
df['macd_signal'] = df['macd'].ewm(span=9).mean()
df['macd_hist']   = df['macd'] - df['macd_signal']

ATR (Average True Range)

tr = pd.concat([
    high - low,
    (high - close.shift(1)).abs(),
    (low  - close.shift(1)).abs()
], axis=1).max(axis=1)
df['atr_14'] = tr.rolling(14).mean()

Shooting star candle pattern

# Upper wick > 2× body, small lower wick, bearish close
body      = (close - open_).abs()
upper_wick = high - pd.concat([close, open_], axis=1).max(axis=1)
lower_wick = pd.concat([close, open_], axis=1).min(axis=1) - low

df['shooting_star'] = (
    (upper_wick > 2 * body) &
    (lower_wick < body * 0.3) &
    (close < open_)    # bearish bar
).astype(float)   # 1.0 if pattern present, 0.0 if not

Common edit: Change the confidence threshold

In Section 7, the backtest calls generate_signals(model, X_test, thresh=0.55). Change that value:

# More selective — fewer trades, higher conviction only
signal_test, p_pos, p_neg = generate_signals(model, X_test, thresh=0.65)

# More active — more trades, lower bar
signal_test, p_pos, p_neg = generate_signals(model, X_test, thresh=0.50)

API Reference

All endpoints live under /api/v1/. Authenticated endpoints require an X-API-Key header.

# Base URL
https://api.quantifyme.ai/api/v1/

# Auth header
X-API-Key: qm_xxxxxxxxxxxxxxxx

POST /api/v1/generate

Generate a full Python strategy from natural language. Each of the 7 sections accepts free-text descriptions. Optionally pass structured indicators for exact parameter control.

import requests

resp = requests.post("https://api.quantifyme.ai/api/v1/generate", json={
    "features":      "MACD histogram slope, RSI divergence",
    "signals":       "Long when MACD crosses above zero with RSI confirmation",
    "model":         "XGBoost",
    "optimization":  "Maximize Sharpe ratio",
    "risk":          "Stop loss 0.3%, scale by ATR",
    "risk_function": "Skip trades on Fridays after 18:00 UTC",
    "indicators": {
        "macd_enabled": True, "macd_fast": 12, "macd_slow": 26, "macd_signal": 9,
        "rsi_enabled":  True, "rsi_period": 14,
        "atr_enabled":  True, "atr_period": 14,
    },
    "pos_rules": {"max_pos": 1, "direction": "both", "on_opposite": "reverse", "cooldown": 0},
    "start_date":   "2025-01-01",
    "end_date":     "2026-04-01",
    "train_split":  0.7,
    "claude_model": "sonnet",
}, headers={"X-API-Key": "qm_xxx"})

code = resp.json()["code"]

pos_rules options

POST /api/v1/generate/from-template

Generate strategy code from a curated template. Override any field — text fields replace, dict fields (indicators, pos_rules) merge.

resp = requests.post("https://api.quantifyme.ai/api/v1/generate/from-template", json={
    "template":    "scalper",
    "start_date":  "2025-01-01",
    "end_date":    "2026-04-01",
    "pos_rules":   {"direction": "long"},       # override: long-only
    "indicators":  {"rsi_period": 21},       # override: RSI 21 instead of 14
    "claude_model": "sonnet",
}, headers={"X-API-Key": "qm_xxx"})

Available templates

POST /api/v1/indicators

Compute built-in indicators on OHLC data without training a model. Returns indicator values as JSON.

resp = requests.post("https://api.quantifyme.ai/api/v1/indicators", json={
    "indicators": {"rsi_enabled": True, "rsi_period": 14, "macd_enabled": True},
    "symbol":     "EURUSD",
    "timeframe":  "15min",
    "start":      "2026-04-01",
    "limit":      100,
    "format":     "columns",   # or "rows"
}, headers={"X-API-Key": "qm_xxx"})

data = resp.json()
# data["ind_rsi14"]  → [45.2, 48.1, 52.3, ...]
# data["timestamps"] → ["2026-04-01 00:00:00", ...]

Available indicators

POST /api/v1/indicators/custom

Convert Pine Script or natural language to a computed indicator via Claude. Returns overlays, panels, signals, and ML features.

# Natural language
resp = requests.post("https://api.quantifyme.ai/api/v1/indicators/custom", json={
    "source":    "Supertrend indicator with ATR period 10 and multiplier 3",
    "timeframe": "15min",
    "fe_mode":   "basic",    # "full" | "basic" | "none"
}, headers={"X-API-Key": "qm_xxx"})

# Pine Script
resp = requests.post("https://api.quantifyme.ai/api/v1/indicators/custom", json={
    "source": "//@version=5
indicator('My RSI')
plot(ta.rsi(close, 14))",
    "provider": "anthropic",  # "anthropic" | "groq" | "ollama"
}, headers={"X-API-Key": "qm_xxx"})

result = resp.json()
# result["name"]     → "Supertrend"
# result["overlays"] → [{id, color, data}]
# result["panels"]   → [{id, title, lines, h_lines}]
# result["signals"]  → [{time, type: "buy"|"sell"}]
# result["features"] → {col_name: [{time, value}]}

Discovery Endpoints (no auth)

These endpoints are public — no API key required. Use them to discover available options before calling authenticated endpoints.

# Discover available indicators
schema = requests.get("https://api.quantifyme.ai/api/v1/indicator-schema").json()

# Discover templates + presets
presets = requests.get("https://api.quantifyme.ai/api/v1/presets").json()
# presets["templates"]["macd_momentum"]["config"] → ready for /generate

Full Example — Copy, Paste, Run

Complete end-to-end script: generate strategy → train model → poll until done → check results. Replace API_KEY with yours.

# QuantifyMe API - Full Example
# 1. Generate strategy code from natural language
# 2. Submit for training
# 3. Poll until complete
# 4. View results
import requests, time

# ──────────────────────────────────────────────────────────────────
# CONFIG — paste your API key here
# ──────────────────────────────────────────────────────────────────
BASE    = "https://api.quantifyme.ai"
API_KEY = "qm_PASTE_YOUR_KEY_HERE"   # ← get from API Endpoint page
HEADERS = {"X-API-Key": API_KEY, "Content-Type": "application/json"}


# ──────────────────────────────────────────────────────────────────
# STEP 1: Generate strategy code
# ──────────────────────────────────────────────────────────────────
print("Generating strategy...")

resp = requests.post(f"{BASE}/api/v1/generate", json={
    # Natural language — describe your strategy
    "features":      "MACD (12,26,9), RSI 14, ATR 14, Volume Z-score",
    "signals":       "Buy when MACD crosses above zero and RSI < 60",
    "model":         "XGBoost",
    "optimization":  "Maximize Sharpe ratio, keep max drawdown under 15%",
    "risk":          "Stop loss 0.3%, fixed 1% risk per trade",

    # Structured indicators — exact params (optional, overrides NL)
    "indicators": {
        "macd_enabled": True, "macd_fast": 12, "macd_slow": 26, "macd_signal": 9,
        "rsi_enabled":  True, "rsi_period": 14,
        "atr_enabled":  True, "atr_period": 14,
    },

    # Position rules
    "pos_rules": {
        "max_pos": 1, "direction": "both",
        "on_opposite": "reverse", "cooldown": 0,
    },

    # Date range + model
    "start_date":   "2025-06-01",
    "end_date":     "2026-04-01",
    "train_split":  0.7,
    "claude_model": "sonnet",
}, headers=HEADERS)

code = resp.json()["code"]
print(f"Strategy generated ({len(code)} chars)")


# ──────────────────────────────────────────────────────────────────
# STEP 2: Submit for training
# ──────────────────────────────────────────────────────────────────
print("Submitting for training...")

resp = requests.post(f"{BASE}/api/v1/train", json={
    "code":         code,
    "model_name":   "API Test Model",
    "start_date":   "2025-06-01",
    "end_date":     "2026-04-01",
    "train_split":  0.7,
    "timeframe":   "15min",
}, headers=HEADERS)

job = resp.json()
job_id = job["job_id"]
print(f"Job {job_id} queued")


# ──────────────────────────────────────────────────────────────────
# STEP 3: Poll until done
# ──────────────────────────────────────────────────────────────────
while True:
    resp = requests.get(f"{BASE}/api/v1/train/{job_id}", headers=HEADERS)
    status = resp.json()
    print(f"  Status: {status['status']}")
    if status["status"] in ("done", "failed"):
        break
    time.sleep(3)


# ──────────────────────────────────────────────────────────────────
# STEP 4: View results
# ──────────────────────────────────────────────────────────────────
if status["status"] == "done":
    m = status.get("metrics", {})
    print("Training complete!")
    print(f"  Return:   {m.get('total_ret', 0):.2%}")
    print(f"  Sharpe:   {m.get('sharpe_strat', 0):.2f}")
    print(f"  Drawdown: {m.get('mdd', 0):.2%}")
    print(f"  Trades:   {m.get('n_trades', 0)}")
else:
    print(f"Training failed: {status.get('error', 'unknown')}")


# ──────────────────────────────────────────────────────────────────
# BONUS: Use a template instead (no NL needed)
# ──────────────────────────────────────────────────────────────────
# resp = requests.post(f"{BASE}/api/v1/generate/from-template", json={
#     "template":    "scalper",
#     "start_date":  "2025-06-01",
#     "end_date":    "2026-04-01",
#     "claude_model": "sonnet",
# }, headers=HEADERS)


# ──────────────────────────────────────────────────────────────────
# BONUS: Compute indicators without training
# ──────────────────────────────────────────────────────────────────
# resp = requests.post(f"{BASE}/api/v1/indicators", json={
#     "indicators": {"rsi_enabled": True, "macd_enabled": True},
#     "timeframe": "15min", "limit": 100,
# }, headers=HEADERS)
# print(resp.json()["ind_rsi14"][:5])  # first 5 RSI values

More Examples

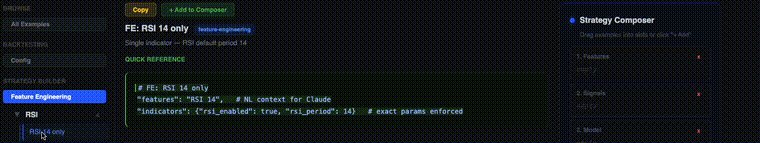

Browse all API examples by section. Drag examples into the Strategy Composer to build and test a strategy.

Demo

Pick examples from each section, drag them into the composer, and hit "Try It" to generate & backtest a strategy.

All snippets below need an X-API-Key header. Click below to copy yours.

Generate a strategy, train it, and see backtest results. Updates live from the Strategy Composer.

Deploy your trained model for live signal delivery via webhook or Telegram.

This proven strategy runs on EURUSD 15-min data (Jan-Apr 2026). Click "Run Now" to see the same results live.

import requests, time

BASE = "https://api.quantifyme.ai"
API_KEY = "qm_YOUR_KEY"  # get from /api-docs
H = {"X-API-Key": API_KEY, "Content-Type": "application/json"}

# Strategy: EMA Trend + Session Filter by @malco
gen = requests.post(f"{BASE}/api/v1/generate", json={
    "features": "RSI 14, EMA 50/200, ATR 14, Volume Z-score",
    "signals": "Buy when EMA 50 crosses above EMA 200 and RSI between 40-60",
    "model": "Random Forest",
    "optimization": "Maximize Sharpe ratio, keep max drawdown under 8%",
    "risk": "ATR-based stop loss (1.5x ATR), take profit 3x ATR",
    "risk_function": "Only trade during London-NY overlap (13:00-17:00 UTC), skip Fridays after 16:00",
    "pos_rules": {"max_pos": 1, "direction": "both", "on_opposite": "close_only", "cooldown": 3},
    "start_date": "2026-01-01", "end_date": "2026-04-01",
    "train_split": 0.7, "claude_model": "sonnet"
}, headers=H, timeout=120)
code = gen.json()["code"]

train = requests.post(f"{BASE}/api/v1/train", json={
    "code": code, "model_name": "EMA Trend Session",
    "start_date": "2026-01-01", "end_date": "2026-04-01",
    "train_split": 0.7, "timeframe": "15min"
}, headers=H)
job_id = train.json()["job_id"]

while True:
    s = requests.get(f"{BASE}/api/v1/train/{job_id}", headers=H).json()
    print(s["status"])
    if s["status"] == "done":
        m = s["metrics"]
        print(f"Return: {m['total_ret']:.2%}, Sharpe: {m['sharpe_strat']:.2f}")
        break
    elif s["status"] == "failed":
        print(s.get("error", ""))
        break
    time.sleep(3)

event: step  data: {"stage":"generate", "pct":10}
event: step  data: {"stage":"train",    "pct":60}
event: step  data: {"stage":"deploy",   "pct":95}
event: done  data: {"live_url":"...", "model":"Model_7"}
